Buy nepaliedu product sale walkie talkie, Buy Quality talkie walkie directly from China talkie talkie Suppliers: 2pcs/lot Wireless FM modulation SA828 All-in-One UHF | VHF Frequency Embedded walkie talkie modules Enjoy Free Shipping Worldwide! Limited Time SaleEasy Return.
2pcs Wireless FM modulation SA828 3km All-in-One UHF RDA1846S Embedded walkie talkie module+2pcs antennas SA828 is an all-in-one professional walkie-talkie module in small size. It is very easy to use with powerful function. This module has full function of a professional walkie-talkie and can talk with any analog walkie-talkie in the market. With the small size, it can be easily embedded into instrument, portable and handheld device. SA828 works well in the hot/cold environment with the KDS 1PPM TCXO. The features of excellent antenna match network, good RF amplifier, high RF sensitivity allow its communication easily to achieve over 3Km in open area. Rotary switch for channel selection, EEPROM,Audio Amplifier, RF Amplifier, PTT key, Antenna socket are all included in such a small size module. Besides, all parameters (CTCSS, CDCSS, SQ, Predefined channels etc) can be easily modified either by PC software or command using UART interface. With the embedded audio volume turning circuit, user can only solder a variable resistor on Pin16, Pin17 to adjust the volume steplessly. There are two frequency bands of SA828: SA828-U and SA828-V. The only difference is the frequency range. The others are same, including module size, interface, software protocol, etc. The two modules' frequency ranges are: SA828-U: U band, 400 -- 480MHz SA828-V: V band, 134 -- 174MHz Product Picture: Features:

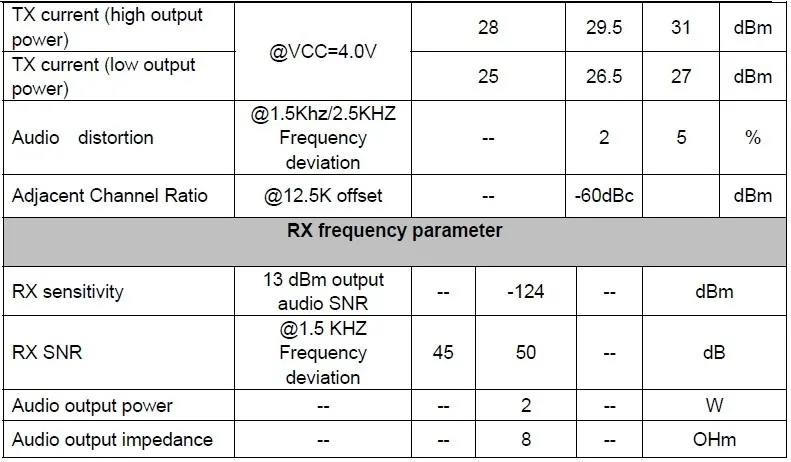

Internal diagram: Typical application schematic: Pin out definition: Parameter setup: Mechanical dimension: Communication protocol: The parameters of SA828 can be modified with standard UART interface. The interface voltage is TTL 3.3V. User can contact your sales engineer for detailed communication protocol.
If you need VHF(134~174MHz) frequency band, just leave message please.
